"Simple, compact, and generous machine appearance
Super wide mains input range
Excellent microprocessor to ensure reliable operation
Automatic adjustment of the AC mains power boost, step-down, stable voltage output
Mains restart function
Output modified sine wave
Automatic charge in off-mode
Cold start function
Compatible generators

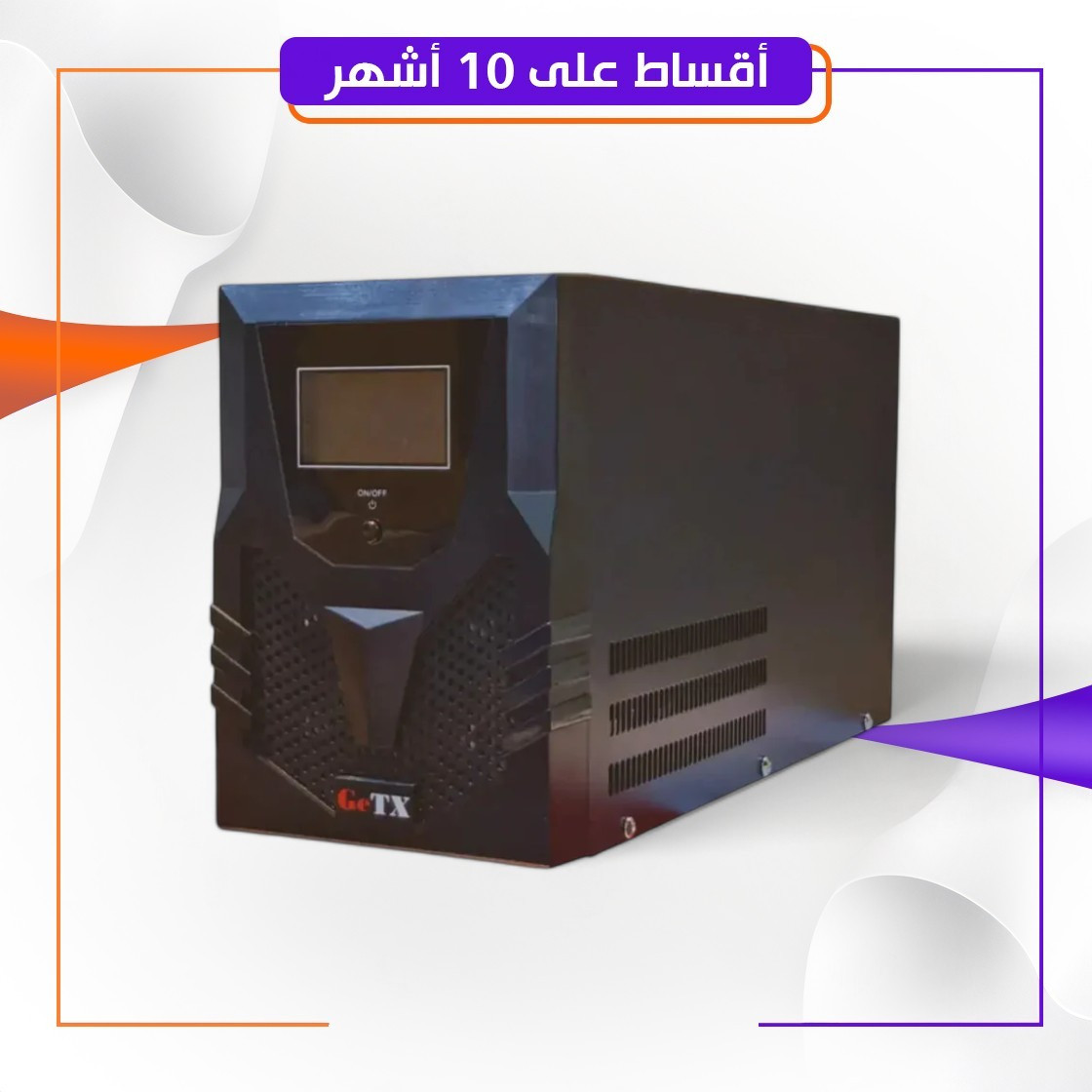

Model: GXTX-2000
Capacity: 2000VA / 1200W
Input:
Voltage: 220VAC
AC Mains Input Voltage Range: 145-280 VAC (same as AC mains)
Frequency: 50 Hz
Output:
Voltage Range (Battery Mode): ±10%
Frequency Range (Battery Mode): 50 Hz ±1 Hz
Transfer Time: <6ms
Waveform (Battery): Modified sine wave
Battery:
Battery Type & Quantity: 12V 9Ah x 2 or 12V 12Ah x 2
Battery Charging Time: 6 hours charge to 90%
LED Indicators:
AC Mode: Green light
Battery Mode: Red light flash
Audible Alarm:
Battery Mode: Alarm beeps every six seconds
Low Battery: Alarm beeps every second
Overload: Alarm beeps twice every second
Fault: Alarm beeps continuously
Protection Function:
Comprehensive Protection: Overload, deep discharge, and over-charge protection
Environment:
Temperature And Humidity: Relative humidity 0-90% and temperature 0- 40°C (Non-condensing)
Noise: Less than 40dB at one meter distance
Physical Function:
Dimensions D X W X H (mm): 460x460x315
Net Weight (kgs): 13.5"
